Dynamic Roller Checkweigher SC3-10060L30
- group name
- Checkweigher
- Min Order
- 1 piece
- brand name
- SameGram
- model
- SC3-10060L30
- Nearest port for product export
- shenzhen
- Delivery clauses under the trade mode
- CIP
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Mon, 15 Sep 2025 08:18:56 GMT
Paramtents
Weighting range 1-30kg
Belt speed 5-60m/min
Weighting accuracy ±15-30g
Weighting section size L 1000mm*W 600mm
Applicable product size L≤750mm; W≤600mm
Rejection mode Customized
Packging & Delivery
-
Min Order1 piece
Briefing
SC3-10060L30 is an Dynamic Roller Checkweigher for large packages, economical and widely used in various outer box products
Detailed
Detail Information

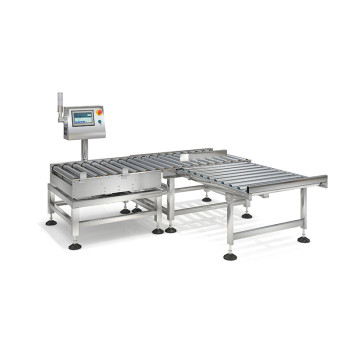

Dynamic Roller Checkweigher SC3-10060L30
Introduction
The SC3-10060L30 Dynamic Roller Checkweigher is an advanced automatic checkweigher machine designed for high-volume, heavy-weight product lines. This checkweigher for large packages offers precise and efficient weight inspection, especially for missing item detection in full cartons. With seamless integration into inline conveyor scale systems, it ensures real-time quality control. Ideal for industries such as food, pharma, electronics, and daily chemicals, this full case checkweigher supports multi-language UI, ERP/MES integration, and remote access. A powerful addition to modern checkweigher systems, SC3-10060L30 meets the highest standards for checkweigher machines.
Dynamic Roller Checkweigher SC3-10060L30 Features
Dynamic Roller Checkweigher SC3-10060L30
Technical Parameters
| Product model | SC3-10060L30 |
| Weighting range | 1-30kg |
Weighting section size | L 1000mm*W 600mm |
Belt speed | 5-60m/min |
Air pressure interface | Φ8mm |
| Case material | Spray painting on carbon steel |
Conveying direction | Facing the machine, left in and right out |
Display division | 10g |
| Weighting accuracy | ±15-30g |
| Applicable product size | L≤750mm; W≤600mm |
Storage formula | 100 types |
| Power supply | AC220V±10% |
| Air source | 0.5-0.8MPa |
Data transmission | USB data export |
Alarm mode | Sound and light alarm and automatic rejection |
Rejection mode | Push rod type, swing wheel type, jacking transplanting are optional |
| Optional function | Real-time printing, code reading and sorting, online code spraying, online code reading, online labeling |
Operation screen | 7-inch Kunlun Tongtai color touch screen |
Control system | Samegram online weighing control system V1.0.5 |
| Other configurations | Mean Well power supply, Jingyan motor, stainless steel roller, AVIC electrical sensor |
* The maximum checkweighing speed and accuracy may vary depending on the actual product being tested and the installation environment.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
