High Precision Conveyor Metal Detector DD-390 Series
- group name
- Conveyor Metal Detector
- Min Order
- 1 piece
- brand name
- SameGram
- model
- DD-390 Series
- Nearest port for product export
- shenzhen
- Delivery clauses under the trade mode
- CIP
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Mon, 15 Sep 2025 08:12:18 GMT
Paramtents
Sensitivity (empty belt surface) FE(Φ0.8mm),NON-FE(Φ1.2mm),SUS316(1.5Φmm)
Production speed 1~1000m/min,fixed speed 25/min
Effective detection channel(mm) 400 ×120 (W×H) customizable
Conveyor belt material Food grade PU belt
Structure SUS304，Comply with HACCP, GMP, FDA, CAS and other
Protection IP 66 (probe) Others are IP54, optional
Packging & Delivery
-
Min Order1 piece
Briefing
Customizable metal detector for conveyor belt with dual frequency, high sensitivity, and strong anti-interference.
Detailed
Detail Information

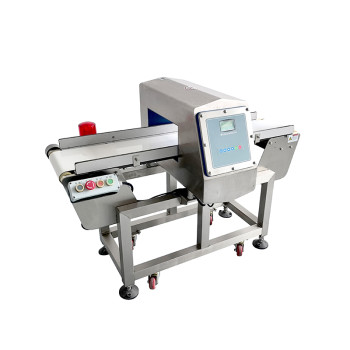

High Precision Conveyor Metal Detector DD-390 Series
Introduction
The High Precision Conveyor Metal Detector DD-390 Series is a high-performance solution engineered for precision and versatility in demanding production lines. Built with advanced digital technology and imported components, it offers superior sensitivity and stability. With customizable frequencies, intelligent learning, and memory functions, it effectively eliminates product effect interference—ideal for high-moisture, high-salt, or oily items. This metal detector for food processing supports a wide range of applications with adjustable speed (1–1000 m/min) and modular design. Compatible with various reject systems, it's the trusted choice for metal detector conveyor solutions in the food industry.
High Precision Conveyor Metal Detector DD-390 Series
Features
High Precision Conveyor Metal Detector DD-390 Series
Technical Parameters
| Product model | DD-390 (4012) |
| External dimensions | 1350×802×950(L×W×H) customizable |
Effective detection channel | W 400 mm*H 120 mm |
Belt width | 350mm |
Sensitivity (empty belt surface) | FE(Φ0.8mm),NON-FE(Φ1.2mm),SUS316(1.5Φmm) |
| Production speed | 1~1000m/min,fixed speed 25/min |
Operation indication method | Flat touch buttons |
Frame height | 700±50 |
| Conveyor belt material | Food grade PU belt |
| Structure | SUS304，Comply with HACCP, GMP, FDA, CAS and other standards |
Protection | IP 66 (probe) Others are IP54, optional |
| Relative humidity | 20 - 80%, non-condensing |
| Power supply | AC220V±10%, single phase, grounded; 47 Hz to 65 Hz, 100 W (max) |
Operating temperature | Ambient temperature -10° to 40°C (14° to 104°F)； Product temperature in well -10° to 55°C (14° to 131°F)。 |
Language | English, Spanish, French, German, Italian, Chinese, Czech, Russian, Polish, Thai, Korean, Brazilian, Portuguese |
Output type | 6 relay outputs; Relays: 250 volt AC 2 amp (max); 50 volt DC 1 amp (max) |
| Output allocation | Reject 1, Reject 2, Fault, Alarm, Warning, QA Light |
* The detection sensitivity is the detection sensitivity obtained by placing the detection card in the center of the conveyor belt and passing through the detection channel.
* The actual detection sensitivity will vary depending on the product being tested or the conditions of use.
* The actual detection sensitivity will vary depending on the product being tested or the conditions of use.
File Downloads
For more product related parameter files, please contact us.
