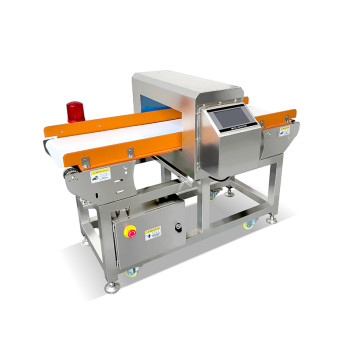

End of Line Conveyor Metal Detector DD-360 Series
- group name
- Conveyor Metal Detector
- Min Order
- 1 piece
- brand name
- SameGram
- model
- DD-360 Series
- Nearest port for product export
- shenzhen
- Delivery clauses under the trade mode
- CIP
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Mon, 15 Sep 2025 08:19:43 GMT
Paramtents
Passing height 80～1000 (customizable)
passing width 300～1200 (customizable)
Standard detection sensitivity： iron(ΦMM） ≥0.6
Standard detection sensitivity： non-iron(ΦMM) ≥0.8
Standard detection sensitivity： SUS304(ΦMM） ≥1.2
Protection Level IP67
Packging & Delivery
-
Min Order1 piece
Briefing
DD-360 Series is a food-grade metal detector conveyor system. Ideal for food industry and food production lines.
Detailed
Detail Information
End of Line Conveyor Metal Detector DD-360 Series
Introduction
Samegram's DD-360 Series is a next-generation industrial metal detector conveyor designed for advanced food-grade metal detection. Featuring an intuitive touch-screen interface, it allows fast setup and precise calibration across multiple product types. As a metal detector for food production line operations, it offers real-time data display, frequency adjustment, product memory (100+ profiles), and exportable detection logs. Fully compliant with GFSI and FSMA standards, it helps reduce false rejects and maximize efficiency. This food metal detector suits global food and pharma producers, especially in the UK market. Ideal for complex production, DD-360 leads among food grade metal detectors.
End of Line Conveyor Metal Detector DD-360 Series
Features
End of Line Conveyor Metal Detector DD-360 Series
Technical Parameters
| Product model | DD-360 series |
| Passing height | 80～1000 (customizable) |
passing width | 300～1200 (customizable) |
Standard detection sensitivity： iron(ΦMM） | ≥0.6 |
Standard detection sensitivity： non-iron(ΦMM） | ≥0.8 |
| Standard detection sensitivity： SUS304(ΦMM） | ≥1.2 |
power supply | AC200V±10% 50-60HZ (AC110V or AC380V can be customized) other options |
| Applicable environment | Temperature: -180～50℃, relative humidity: 30～90℃ |
| Machine materials | Carbon steel with baking varnish or stainless steel 304 |
| Protection Level | IP67 |
Memory product quantity | 100 types |
Alarm mode | Alarm shutdown, buzzer alarm or rejection mechanism optional |
| Display mode | LED LCD |
How to operate | Touch button input (touch optional) |
Machine weight | ≥120KG |
* Probe detection window, the size of the whole machine can be customized according to customer needs. The higher the detection window height, the lower the detection sensitivity. At the same time, the wider the detection window, the lower the detection sensitivity
* The detection sensitivity is the detection sensitivity obtained by placing the detection card in the center of the conveyor belt and passing it through the detection channel. The actual detection sensitivity will vary depending on the product being tested or the conditions of use.
* The detection sensitivity is the detection sensitivity obtained by placing the detection card in the center of the conveyor belt and passing it through the detection channel. The actual detection sensitivity will vary depending on the product being tested or the conditions of use.
File Downloads
For more product related parameter files, please contact us.
