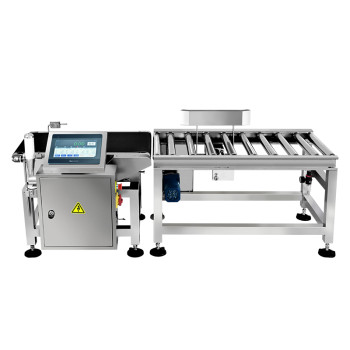

Light-Mid Weight Checkweigher for up to 15 kg SC2-8040L15
- group name
- Checkweigher
- Min Order
- 1 piece
- brand name
- SameGram
- model
- SC2-8040L15
- Nearest port for product export
- shenzhen
- Delivery clauses under the trade mode
- CIP
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Mon, 15 Sep 2025 08:12:19 GMT
Paramtents
Weighting range 0.05-15kg
Belt speed 5-90m/min
Weighting accuracy ±3-10g
Weighting section size L 800mm*W 400mm
Applicable product size L≤600mm; W≤400mm
Rejection mode Customized
Packging & Delivery
-
Min Order1 piece
Briefing
SC2-8040L15 is an weight checker machine with advanced data tracking and flexible speed control. excellent performance weigher
Detailed
Detail Information
Light-Mid Weight Checkweigher SC2-8040L15
Introduction
The SC2-8040L15 is a high-performance light-mid weight checkweigher designed for dynamic checkweighing of products up to 15 kg. As an advanced online dynamic checkweigher, it offers reliable, high-speed inspection for medium-to-heavy packages. This checkweigher high speed solution features precision sensors and a robust conveyor system, making it ideal for logistics, food, and manufacturing industries. The inline checkweighers ensure seamless integration into existing lines, while the smart weight checker machine automatically rejects out-of-spec products. With a flexible checkweigher system design, the SC2-8040L15 maximizes production efficiency and supports real-time quality control.
Light-Mid Weight Checkweigher SC2-8040L15
Features
Light-Mid Weight Checkweigher SC2-8040L15
Technical Parameters
| Product model | SC2-8040L15 |
| Weighting range | 0.05-15kg |
Weighting section size | L 800mm*W 400mm |
Belt speed | 5-90m/min |
| Case material | 304 stainless steel |
Display division | 1g |
| Weighting accuracy | ±3-10g |
| Applicable product size | L≤600mm; W≤400mm |
Storage formula | 100 types |
| Power supply | AC220V±10% |
Data transmission | USB data export |
Sorting section | Standard 1 section.optional 3 section |
Alarm mode | Sound and light alarm and automatic rejection |
Rejection mode | Push rod, swing arm, drop, up and down flip, etc. (customizable) |
| Optional function | Real-time printing, code reading and sorting, online code spraying, online code reading, online labeling |
* The maximum checkweighing speed and accuracy may vary depending on the actual product being tested and the installation environment.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
