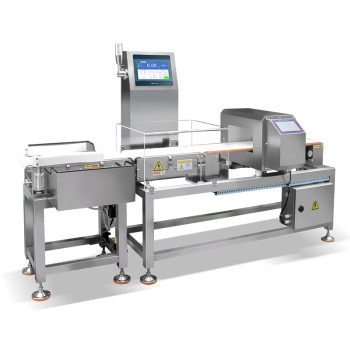

Checkweigher with Metal Detector Combination System SCM-4530L2
- group name
- Checkweigher Combination System
- Min Order
- 1 piece
- brand name
- SameGram
- model
- SCM-4530L2
- Nearest port for product export
- shenzhen
- Delivery clauses under the trade mode
- CIP
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Mon, 15 Sep 2025 05:48:56 GMT
Paramtents
Weighting range 1-2000g
Belt speed 5-28m/min
Weighting accuracy ±0.3-1g
Size of goden inspection H 120mm*W 300mm
Size of weighing section L≤200mm; W≤120mm；H≤100mm
Sise of inspection section L 450mm*W 230mm
Sensitivity of metal detection empty machine Fe:0.6-1.2mm，Not Fe：0.8-1.5mm、Sus：1.2-2.0mm
Rejection mode Push rod type、sliding type optional
Packging & Delivery
-
Min Order1 piece
Briefing
SCM-4530L2 is a checkweigher metal detector combination system ,ideal for food processing and pharmaceutical on compact lines.
Detailed
Detail Information
Checkweigher with Metal Detector Combination System SCM-4530L2
Introduction
The SCM-4530L2 is a high-performance metal detector checkweigher, engineered for combination metal detection and checkweigher systems in food processing. This compact system ensures quality and compliance by detecting metal contaminants and verifying weight in a single pass. Designed for seamless checkweigher and metal detector integration in food processing, it improves efficiency, saves space, and minimizes handling. As a detector of metal and weight in real-time, the SCM-4530L2 is ideal for manufacturers seeking smart, automated checkweighers with metal detector capabilities in modern production environments.
Checkweigher with Metal Detector Combination System SCM-4530L2 Features
Checkweigher with Metal Detector Combination System SCM-4530L2
Technical Parameters
| Product model | SCM-4530L2 |
| Weighting range | 1-2000g |
Size of goden inspection | H 120mm*W 300mm |
Belt speed | 5-28m/min |
Display division | 0.1g |
| Weighting accuracy | ±0.3-1g |
| Size of weighing section | L≤200mm; W≤120mm；H≤100mm |
Storage formula | 100 types |
| Power supply | AC220V±10% |
Case material | 304 stainless steel |
Data transmission | USB data export |
Sise of inspection section | L 450mm*W 230mm |
Detection method | Electromagnetic induction/digital weighing sensor |
Rejection mode | Push rod type、sliding type optional |
Sensitivity of metal detection empty machine | Fe:0.6-1.2mm，Not Fe：0.8-1.5mm、Sus：1.2-2.0mm |
* The maximum checkweighing speed and accuracy may vary depending on the actual product being tested and the installation environment.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
File Downloads
For more product related parameter files, please contact us.
