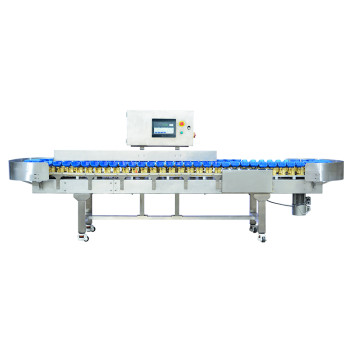

Tray Weight Sorting Machine SWSR-750TC6
- group name
- Weight Sorter
- Min Order
- 1 piece
- brand name
- SameGram
- model
- SWSR-750TC6
- Nearest port for product export
- shenzhen
- Delivery clauses under the trade mode
- CIP
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Mon, 15 Sep 2025 08:18:56 GMT
Paramtents
Weighting range 1-2000g
Sorting speed 1-300m/min
Weighting accuracy ±0.3-2g
Tray size 145×70×50mm
Applicable product size L≤100mm; W≤65mm
Sorting port number 6-20 grades customizable
Packging & Delivery
-
Min Order1 piece
Briefing
The SWSR-750TC6 is a tray-based weight sorting machine designed for precision sorting of lightweight food products, particularly fish, seafood, and poultry weighing up to 200g
Detailed
Detail Information
Tray Weight Sorting Machine SWSR-750TC6
Introduction
The SWSR-750TC6 is a food-grade weight sorter machine crafted from 304 stainless steel with IP65 waterproof protection, designed as a high-performance fish weight sorting machine and versatile weight sorting machine for lightweight food products up to 200g. Its tray-based system ensures gentle handling, making it ideal for delicate items like fish, seafood, and poultry. Featuring multi-level automatic catchweighers with 6 to 20 customizable grading levels, this weight checking sorter replaces manual sorting, delivering superior speed, accuracy, and hygiene. Equipped with a password-protected, three-tier user access interface, the SWSR-750TC6 offers intelligent, scalable weight classification for high-throughput food processing environments.
Tray Weight Sorting Machine SWSR-750TC6
Features
Tray Weight Sorting Machine SWSR-750TC6
Technical Parameters
| Product model | SWSR-750TC6 |
| Weighting range | 1-2000g |
Tray size | 145×70×50mm |
Sorting speed | 1-300m/min |
Air pressure interface | 304 stainless steel |
Case material | 304 stainless steel |
Display division | 0.1g |
| Weighting accuracy | ±0.3-2g |
| Applicable product size | L≤100mm; W≤65mm |
Storage formula | 100 types |
| Power supply | AC220V±10% |
Air source | 0.5-0.8MPa |
Data transmission | USB data export |
Sorting port number | 6-20 grades customizable |
Sorting method | Tipping bucket sorting |
Operation screen | 10-inch Weiluntong color touch screen |
Control system | Samegram online weighing control system V1.0.5 |
Other configurations | Meanwell power supply, Jingyan motor, Swiss PU food conveyor belt, NSK bearing, Mettler Toledo sensor
|
* The maximum checkweighing speed and accuracy may vary depending on the actual product being tested and the installation environment.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
File Downloads
For more product related parameter files, please contact us.
