Dual-Layer Automatic Weight Sorter SWSD-4523L2
- group name
- Weight Sorter
- Min Order
- 1 piece
- brand name
- SameGram
- model
- SWSD-4523L2
- Nearest port for product export
- shenzhen
- Delivery clauses under the trade mode
- CIP
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Mon, 15 Sep 2025 08:10:35 GMT
Paramtents
Weighting range 1-2000g
Belt speed 5-90m/min
Weighting accuracy ±0.3-2g
Weighting section size L 450mm*W 230mm
Applicable product size L≤300mm; W≤230mm
Sorting port number 1-20 grade customizable
Packging & Delivery
-
Min Order1 piece
Briefing
SWSD-4523L2 is a weight sorter with food-grade material and IP65 protection double-layer design ensures stronger waterproofnessvery suitable for fish and shrimp weight sorting.
Detailed
Detail Information

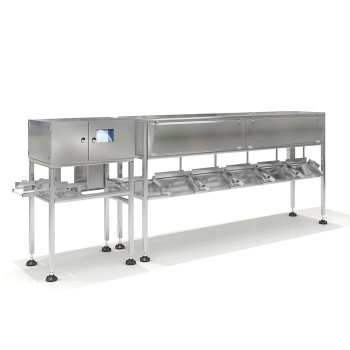

Dual-Layer Automatic Weight Sorter SWSD-4523L2
Introduction
The SWSD-4523L2 is a precision food weight sorter built for fish and shrimp weight sorting, as well as meat and poultry applications. Made with food-grade materials and trays, it complies with GMP and ISO standards, Dual-Layer design and the IP65-rated body ensures safe use in wet environments. The smart touchscreen interface supports multilingual operation and real-time feedback. Designed for sorting material by weight, this system enhances weight sorting in food processing by delivering consistent results, minimizing labor, and maintaining hygiene. SWSD-4523L2 is the ideal choice for weight sorting of food with efficiency and precision.
Dual-Layer Automatic Weight Sorter SWSD-4523L2
Features
Dual-Layer Automatic Weight Sorter SWSD-4523L2
Technical Parameters
| Product model | SWSD-4523L2-C6 |
| Weighting range | 1-2000g |
Weighting section size | L 450mm*W 230mm |
Belt speed | 5-90m/min |
Air pressure interface | Φ8mm |
Case material | 304 stainless steel |
Display division | 0.1g |
| Weighting accuracy | ±0.3-2g |
| Applicable product size | L≤300mm; W≤230mm |
Storage formula | 100 types |
| Power supply | AC220V±10% |
Air source | 0.5-0.8MPa |
Data transmission | USB data export |
Sorting port number | 1-20 grade customizable |
Rejection mode | Air blowing, push rod, swing arm, drop, up and down flip, etc. (customizable) |
Operation screen | 10-inch Weiluntong color touch screen |
Control system | Samegram online weighing control system V1.0.5 |
Other configurations | Meanwell power supply, Jingyan motor, Swiss PU food conveyor belt, NSK bearing, Mettler Toledo sensor |
* The maximum checkweighing speed and accuracy may vary depending on the actual product being tested and the installation environment.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
File Downloads
For more product related parameter files, please contact us.
