Hygienic Food Checkweigher for Lightweight Packages SCF-4523L3
- group name
- Checkweigher
- Min Order
- 1 piece
- brand name
- SameGram
- model
- SCF-4523L3
- Nearest port for product export
- shenzhen
- Delivery clauses under the trade mode
- CIP
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Mon, 15 Sep 2025 08:13:06 GMT
Paramtents
Weighting range 1-3000g
Belt speed 5-90m/min
Weighting accuracy ±0.3-2g
Weighting section size L 450mm*W 230mm
Applicable product size L≤300mm; W≤220mm
Rejection mode Customized
Packging & Delivery
-
Min Order1 piece
Briefing
SCF-4523L3 is a hygienic checkweigher with high precision and hi speed checkweighing for food industry use，easy to integrate
Detailed
Detail Information

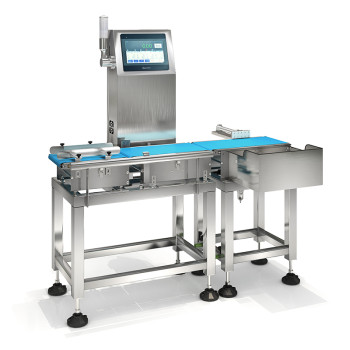

Hygienic Food Checkweigher for Lightweight Packages SCF-4523L3
Introduction
The SCF-4523L3 is a dynamic checkweigher designed for hygienic operations in the food industry. Featuring a fully enclosed safety guard, adjustable limiter plate, emergency stop, and touchscreen with three-tier access control, it enhances operational safety and usability. As a washdown checkweigher built with food-grade materials, it supports precision checkweighing in demanding production zones. Its variable-speed motor adapts easily to different workflows. This wet environment checkweighing system integrates smoothly with cartoners, fillers, and vertical packaging machines. SCF-4523L3 is the ideal hygienic design checkweighing system for high-accuracy food industry applications.
Hygienic Food Checkweigher for Lightweight Packages SCF-4523L3 Applications
Hygienic Food Checkweigher for Lightweight Packages SCF-4523L3
Technical Parameters
| Product model | SCF-4523L3 |
| Weighting range | 1-3000g |
Weighting section size | L 450mm*W 230mm |
Dimensions | 1300×900×1400mm（L×W×H） |
Belt speed | 5-90m/min |
Air pressure interface | Φ8mm |
| Case material | 304 stainless steel |
Display division | 0.1g |
| Weighting accuracy | ±0.3-2g |
| Applicable product size | L≤300mm; W≤220mm |
Storage formula | 100 types |
Conveyor belt height from ground | 750mm |
| Power supply | AC220V±10% |
Air source | 0.5-0.8MPa |
Data transfer | USB data export |
Alarm mode | Sound and light alarm and automatic rejection |
Rejection mode | Air blowing, push rod, swing arm, drop, up and down flip, etc. (customizable) |
| Optional function | Real-time printing, code reading and sorting, online code spraying, online code reading, online labeling |
Operation screen | 10-inch Weiluntong color touch screen |
Control system | Samegram online weighing control system V1.0.5 |
Other configurations | Meanwell power supply, Jingyan motor, Swiss PU food conveyor belt, NSK bearing, Mettler Toledo sensor |
* The maximum checkweighing speed and accuracy may vary depending on the actual product being tested and the installation environment.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
File Downloads
For more product related parameter files, please contact us.
