Dual Lane Checkweigher for Multi-Lane Packaging SCP2
- group name
- Checkweigher
- Min Order
- 1 piece
- brand name
- SameGram
- model
- SCP2
- Nearest port for product export
- shenzhen
- Delivery clauses under the trade mode
- CIP
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Fri, 05 Dec 2025 13:59:42 GMT
Paramtents
Weighting range ≤200g
Weighting section size L 350mm*W 160mm
Belt speed 20-60m/min
Weighting accuracy ±0.1-±0.3g
Applicable product size L≤250mm; W≤150mm
Packging & Delivery
-
Min Order1 piece
Briefing
SCP2 is a dual lane checkweigher with double belt conveyer, Very suitable for fast production lines such as food and medicine
Detailed
Detail Information

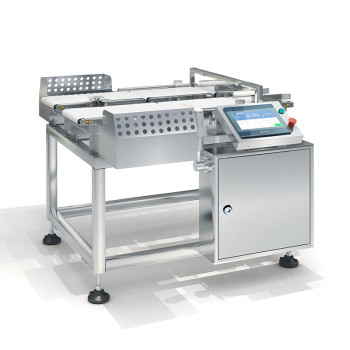

Dual Lane Checkweigher for Multi-Lane Packaging SCP2-3516L02
Introduction
The dual lane checkweigher SCP2-3516L02 is designed for production lines where multiple product flows converge, allowing two lanes to be inspected simultaneously. Each lane operates independently, ensuring high accuracy while increasing overall throughput.
This configuration is particularly useful for food, pharmaceutical, and personal-care packaging lines, helping facilities reduce floor space and efficiently manage the combined re-inspection workload.
Constructed from stainless steel with IP65 protection, the conveyor checkweigher SCP2-3516L02 is suitable for hygiene-sensitive environments. It supports ERP/MES connectivity, multilingual operation, and comprehensive data logging, providing a reliable inline weight inspection solution for modern factories with multi-lane packaging operations.
Automatic Weight Control System for Multi-Lane Packaging SCP2-3516L02 Features
Dual Lane Checkweigher for Multi-Lane Packaging SCP2-3516L02 Technical Parameters
| Product model | SCP2-3516L02 | |
| Weighting range | ≤200g | |
Weighting section size | L 350mm*W 160mm | |
Belt speed | 20-60m/min | |
Air pressure interface | Φ8mm | |
| Case material | 304 stainless steel | |
Conveying direction | Facing the machine, left in and right out | |
Display division | 0.02g | |
| Weighting accuracy | ±0.1-±0.3g | |
| Applicable product size | L≤250mm; W≤150mm | |
Storage formula | 100 types | |
| Power supply | AC220V±10% | |
| Air source | 0.5-0.8MPa | |
Data transmission | USB data export | |
Alarm mode | Sound and light alarm and automatic rejection | |
Rejection mode | Air blowing, push rod (customizable) | |
| Optional function | Real-time printing, code reading and sorting, online code spraying, online code reading, online labeling | |
Operation screen | 10-inch Weiluntong color touch screen | |
Control system | Samegram online weighing control system V1.0.5 | |
| Other configurations | Meanwell power supply, Jingyan motor, Swiss PU food conveyor belt, NSK bearing, Mettler Toledo sensor | |
* The maximum checkweighing speed and accuracy may vary depending on the actual product being tested and the installation environment.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
File Downloads
For more product related parameter files, please contact us.
Why Choose Our Multi-Lane Checkweighers Solutions
Core Functions of the Multi-Lane Checkweigher
✔ Weight Verification: Checks each package’s net weight to detect underweight or overweight units.
✔ Missing/Extra Item Detection: Ensures multi-pack or sachet bundles have the correct count before packaging.
✔ Reject Non-Conforming Packages: Automatically removes out-of-spec or defective packs per lane.
✔ Quality Control & Traceability: Maintains per-lane logs of weight, pass/fail status, reject events — facilitating auditor or regulatory compliance.
✔ Optimize Material Usage: Helps prevent over-filling / under-filling and reduce giveaway, protecting margin especially for high-cost contents.
Trusted Checkweighing Compliance
✔ CE Certification: Complies with EU safety directives for machinery and electrical equipment — ensures safe and standard operation.
✔ ISO 9001 Quality Management: Manufactured under strict quality control systems, ensuring consistent performance, reliability, and ease of maintenance.
These certifications add authority and trustworthiness, especially for export customers or regulated industries needing compliance verification.
Tailored Multi-Lane Checkweigher Services
SameGram offers full customization and support for SCP2 series:
✔ Custom number of lanes (2–3), belt width, lane spacing, reject method, and control settings.
✔ Integration support for existing packaging lines (sachet, stick-pack, pouch, bag, box lines).
✔ Data interface customization (USB, LAN, optional MES/ERP connection) for traceability and QA systems.
✔ After-sales support: spare parts supply, maintenance guidance, remote assistance, and operator training.
This ensures SCP2 series can adapt to a wide variety of production requirements and packaging formats.
Dual Lane Checkweigher SCP2 series Application industries
sample packs — use SCP2 series to ensure correct dosage weight, detect missing sachets, and maintain batch traceability.
parallel weighing helps ensure each pack meets net-weight standards and reduces giveaway or underfill.
Dehydrated vegetable/fruits sachets, dried fruit snack bags — ideal for lightweight, high-volume sachet packaging with consistent weight control.
Sample sachets, small pouch-pack cosmetics, travel-size packs — ensures uniform net-weight and avoids under-/over-filling, essential for retail compliance.
🥐🍞🥨Bakery
Small breadbag packs, biscuit packs, seasoning sachets for bakery mixes — ensures consistency and reduces variation in mass-produced small packets.
Dual Lane Checkweigher SCP2 series Case Studies
Dual Lane Checkweigher SCP2 series FAQS
Q1. How many lanes can SCP2 series support?
A: Standard as dual-lane; can be customized to 3 lanes for higher throughput.
Q2. Does parallel operation compromise weighing accuracy?
A: No — each lane operates independently with its own load cell and reject mechanism, ensuring stable, accurate weighing even at high speed.
Q3. What packaging types are suitable for SCP2 series checkweighing?
A: Small to medium packages — sachets, stick-packs, pouches, small bags, small boxes — especially for multi-lane or dual-line packaging machines.
Q4. Can SCP2 series integrate with my existing packaging line?
A: Yes — SCP2 series is compatible with sachet form-fill-seal machines, stick-packers, pouch or bag packaging lines; lane spacing and belt width can be customized to match your layout.
Q5. Is data logging and traceability supported?
A: Yes — per-item weight records, pass/fail logs, lane identifiers, reject events, and batch/production timestamps can all be exported via USB or Ethernet.
