High‑Speed Dynamic Weighing Scale - Logistics Industry SC3-L-12080S60
- group name
- Checkweigher
- Min Order
- 1 piece
- brand name
- SameGram
- model
- SC3-L-12080S60
- Nearest port for product export
- shenzhen
- Delivery clauses under the trade mode
- CIP
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Mon, 15 Sep 2025 08:12:18 GMT
Paramtents
Weighting range 1-60kg
Belt speed 5-120m/min
Weighting accuracy 10-30g
Weighting section size L 1200mm*W 800mm
Applicable product size L≤800mm; W≤800mm
Rejection mode Customized
Packging & Delivery
-
Min Order1 piece
Briefing
SC3-L-12080S60 is one of the best parcel weighing scales for large-items up to 60kg.，which can be integrated into DWS system.
Detailed
Detail Information

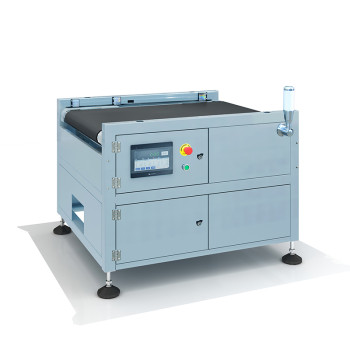

High‑Speed Dynamic Weighing Scale - Logistics Industry SC3-L-12080S60
Introduction
The SC3-L-12080S60 is a heavy-duty logistics checkweigher built to weigh parcel loads up to 60kg with high precision. As one of the best parcel weighing scales, it's designed to optimize weighing parcel logistics operations in distribution centers and freight hubs. Its wide platform and robust logistics scales architecture support bulky, irregular packages. This system excels at weigh out logistics accuracy while maintaining speed and throughput. Fully compatible with scanners and sorters, it simplifies large-scale shipping workflows and sets the standard for weighing scales parcels in industrial settings.
High‑Speed Dynamic Weighing Scale - Logistics Industry SC3-L-12080S60 Features
High‑Speed Dynamic Weighing Scale - Logistics Industry SC3-L-12080S60
Technical Parameters
| Product model | SC3-L-12080S60 |
| Weighting range | 1-60kg |
Weighting section size | L 1200mm*W 800mm |
Belt speed | 5-120m/min |
Case material | Carbon steel spray painting |
Display division | 1g |
| Weighting accuracy | 10-30g |
| Applicable product size | L≤800mm; W≤800mm |
Storage formula | 1 type |
| Power supply | AC220V±10% |
Data transmission | USB data export |
Sorting section | Standard 1 section |
Rejection mode | Push rod type, lever type, balance wheel optional |
| Optional function | Real-time printing, code reading and sorting, online code spraying, online code reading, online labeling |
Operation screen | 7-inch Kunluntong color touch screen |
Control system | Samegram online weighing control system V1.0.5 |
Other configurations | Meanwell power supply, Jingyan motor, Swiss PU food conveyor belt, NSK bearing, Mettler Toledo sensor |
* The maximum checkweighing speed and accuracy may vary depending on the actual product being tested and the installation environment.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
File Downloads
For more product related parameter files, please contact us.
