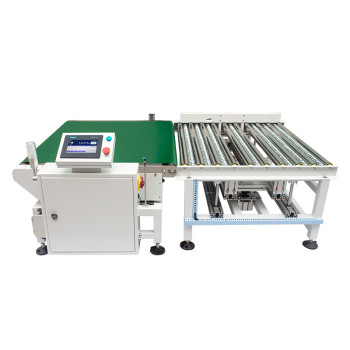

Heavy Automatic Checkweigher up to 80 kg SC3-10070L80
- group name
- Checkweigher
- Min Order
- 1 piece
- brand name
- SameGram
- model
- SC3-10070L80
- Nearest port for product export
- shenzhen
- Delivery clauses under the trade mode
- CIP
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Mon, 15 Sep 2025 08:12:19 GMT
Paramtents
Weighting range 1-80kg
Belt speed 5-90m/min
Weighting accuracy ±10-30g
Weighting section size L 1000mm*W 700mm
Applicable product size L≤700mm; W≤700mm
Rejection mode Customized
Packging & Delivery
-
Min Order1 piece
Briefing
SC3-10070L80 is a heavy duty checkweigher ideal for large items up to 80 kg. This machine is also known as roller checkweigher.
Detailed
Detail Information
Heavy Automatic Checkweigher up to 80 kg SC3-10070L80
Introduction
The SC3-10070L80 is a powerful automatic checkweigher built for large cartons, crates, and bulk packages. Equipped with a robust checkweigher roller system, it enables smooth handling of heavy products without sacrificing speed. As a true hi-speed checkweigher, it maintains weighing precision even under high-throughput demands. The integrated checkweigher conveyor ensures stable transport, while the rugged frame withstands harsh industrial use. This roller checkweigher is ideal for end-of-line inspection in logistics, warehousing, and manufacturing environments requiring a heavy duty checkweigher.
Heavy Automatic Checkweigher up to 80 kg SC3-10070L80
Features
Heavy Automatic Checkweigher up to 80 kg SC3-10070L80
Technical Parameters
| Product model | SC3-10070L80 |
| Weighting range | 1-80kg |
Weighting section size | L 1000mm*W 700mm |
Belt speed | 5-90m/min |
Air pressure interface | Φ8mm |
| Case material | Carbon steel spray painting |
Conveying direction | Facing the machine, left in and right out |
Display division | 1g |
| Weighting accuracy | ±10-30g |
| Applicable product size | L≤700mm; W≤700mm |
Storage formula | 100 types |
power supply | AC220V±10% |
Air source | 0.5-0.8MPa |
Data transmission | USB data export |
Alarm mode | Sound and light alarm and automatic rejection |
Rejection mode | Push rod type, swing wheel type, jacking transplanting are optional |
| Optional function | Inline printing, intelligent code detection and sorting, on-demand inkjet marking, real-time barcode reading, and automated label application. |
Operation screen | 7-inch Kunluntong color touch screen |
Control system | Samegram online weighing control system V1.0.5 |
Other configurations | Mean Well power supply, Jingyan motor, stainless steel roller, AVIC electrical sensor |
* The maximum checkweighing speed and accuracy may vary depending on the actual product being tested and the installation environment.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
File Downloads
For more product related parameter files, please contact us.
