Compact Automatic Weight Sorter SWSS-5012L2
- group name
- Weight Sorter
- Min Order
- 1 piece
- brand name
- SameGram
- model
- SWSS-5012L2
- Nearest port for product export
- shenzhen
- Delivery clauses under the trade mode
- CIP
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Mon, 15 Sep 2025 08:10:07 GMT
Paramtents
Weighting range 1-2000g
Weighting section size L500mm*W120mm
Belt speed 5-90m/min
Sorting port number 1-20 grade customizable
Weighting accuracy ±0.3-2g
Rejection mode Air blowing, push rod, lever, up and down flip ...
Packging & Delivery
-
Min Order1 piece
Briefing
WSS-5012L2 is a compact weight sorter machine designed to ensure stable output and quality control. ideal for fish and meat.
Detailed
Details

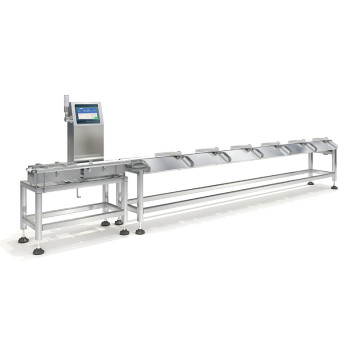

Compact Automatic Weight Sorter SWSS-5012L2
Introduction
The SWSS-5012L2 is a compact, high-speed weigher ideal for automated weighing tasks. This advanced weighing scale provides accurate weight control in real time. As a reliable weigher, it ensures consistent product quality and quickly removes non-compliant products. It is designed for production lines with limited space and can be easily integrated into the production environment. The built-in weighing scale supports accurate detection and traceability. Suitable for food, pharmaceutical and small packaging, this weigher can improve efficiency and ensure compliance.
Compact Automatic Weight Sorter SWSS-5012L2
Features
Compact Automatic Weight Sorter SWSS-5012L2
Technical Parameters
| Product model | SWSS-5012L2 |
| Weighting range | 1-2000g |
Weighting section size | L500mm*W120mm |
Belt speed | 5-90m/min |
Air pressure interface | φ8mm |
Case material | 304 stainless steel |
Conveying direction | Facing the machine, left in and right out |
Display division | 0.1g |
| Weighting accuracy | ±0.3-2g |
| Applicable product size | L≤350mm；W≤120mm |
Storage formula | 100 types |
| Power supply | AC220V±10% |
Air source | 0.5-0.8MPa |
Data transmission | USB data export |
Sorting port number | 1-20 grade customizable |
Rejection mode | Air blowing, push rod, lever, up and down flip plate, turntable type optional |
Operation screen | 10-inch Weiluntong color touch screen |
| Control system | Samegram online weighing control system V1.0.5 |
Other configurations | Meanwell power supply, Jingyan motor, Swiss PU food conveyor belt, NSK bearing, Mettler Toledo sensor |
* The maximum checkweighing speed and accuracy may vary depending on the actual product being tested and the installation environment.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
File Downloads
For more product related parameter files, please contact us.
