Inline Checkweigher for Cans and Bottles SC-C

group name: Checkweigher

Min Order: 1 piece

brand name: SameGram

model: SC-C

Nearest port for product export: shenzhen

Delivery clauses under the trade mode: CIP

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Mon, 15 Sep 2025 08:12:18 GMT

contact supplier

Paramtents

Weighting section size Non-standard customization
Belt speed 5-90m/min
Applicable product size Non-standard customization
Rejection mode Customized
Storage formula 100 types

Packging & Delivery

Min Order1 piece

Briefing

SC-C is a can checkweigher designed for cans ,jars and bottles，which is a reliable online checkweigher machine for production line.

Detailed

Detail Information

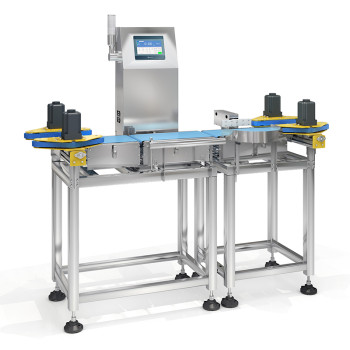

Inline Checkweigher for Cans and Bottles SC-C

Introduction

The Can Checkweigher SC-C is a high-precision Inline Checkweigher designed for high-speed can and bottle production lines. As a reliable checkweighing system, it ensures accurate weight control for canned and bottled goods. This online checkweigher machine is ideal for detecting underfilled or overweight items in real time. With fully integrated reject mechanisms, our automatic checkweighers help maintain consistent product quality. It also functions as a robust bottle checkweigher and checkweigher for bottles, ensuring stable performance even with fast-moving, lightweight containers. The compact design allows easy integration into existing lines, boosting efficiency and compliance.

Inline Checkweigher for Cans and Bottles SC-C Features

the Can Checkweigher Specially built for cans, bottles, and buckets

Rigid Container Ready

Specially built for cans, bottles, and buckets—handles heavy, tall, or liquid-filled items with maximum stability.

Anti-Tip Handling

Features widened conveyors, side guides, and anti-roll design to prevent tilting or product shift during transport.

Heavy Load Tolerance

Reinforced frame and high-capacity sensors allow precise weighing of large or dense containers without vibration drift.

Stable Weighing at High Speeds

Optimized for inline inspection of rigid packaging at fast throughput without sacrificing accuracy or reject control.

Hygienic & Waterproof (IP65)

Designed for wet zones and washdown cleaning; ideal for beverage, canned food, and chemical production lines.

Auto Alerts & Fast Line Switch

Real-time alarms for weight deviation, recipe memory for different container types, and tool-free adjustment.

Inline Checkweigher for Cans and Bottles SC-C Technical Parameters

Product model	SC-C
Weighting range	Non-standard customization
Weighting section size	Non-standard customization
Belt speed	5-90m/min
Air pressure interface	Φ8mm
Case material	304 stainless steel
Conveying direction	Facing the machine, left in and right out
Display division	0.1g
Weighting accuracy	Non-standard customization
Applicable product size	Non-standard customization
Storage formula	100 types

Power supply	AC220V±10%
Air source	0.5-0.8MPa
Data transmission	USB data export
Alarm mode	Sound and light alarm and automatic rejection
Rejection mode	Air blowing, push rod, swing arm, drop, up and down flip, etc. (customizable)
Optional function	Real-time printing, code reading and sorting, online code spraying, online code reading, online labeling
Operation screen	10-inch Weiluntong color touch screen
Control system	Samegram online weighing control system V1.0.5
Other configurations	Samegram online weighing control system V1.0.5

* The maximum checkweighing speed and accuracy may vary depending on the actual product being tested and the installation environment.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.

File Downloads

For more product related parameter files, please contact us.

SameGram Product Brochure（18.62 MB）

Inline Checkweigher for Cans and Bottles SC-C Applications

Beverages

Ensures consistent fill levels by detecting underfilled or overfilled cans, helping prevent customer complaints and preserving brand integrity on high-speed lines.

Bottled soy sauce

Verifies each bottle meets weight standards despite foam or viscosity variation, avoiding underfill risks and ensuring regulatory compliance in liquid packaging.

Cosmetics

Confirms precise product fill per bottle, identifying missing or short-filled units that could affect customer satisfaction or shelf appeal in premium beauty packaging.
