Dynamic Checkweigher Inline Checkweighing Systems SC2-8050L30
- group name
- Checkweigher
- Min Order
- 1 piece
- brand name
- SameGram
- model
- SC2-8050L30
- Nearest port for product export
- shenzhen
- Delivery clauses under the trade mode
- CIP
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Mon, 15 Sep 2025 08:18:57 GMT
Paramtents
Weighting range 0.05-30kg
Belt speed 5-90m/min
Weighting accuracy ±3-10g
Weighting section size L 800mm*W 500mm
Applicable product size L≤600mm；W≤500mm
Rejection mode Customized
Packging & Delivery
-
Min Order1 piece
Briefing
SC2-8050L30 is a high-capacity dynamic checkweigher for packages up to 30 kg. This machine is very economical and widely used.
Detailed
Detail Information

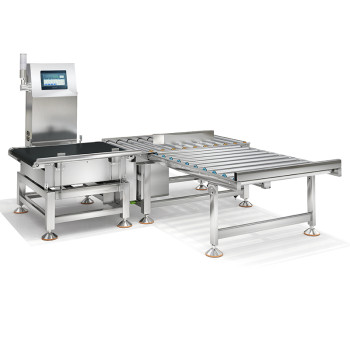

Dynamic Checkweigher Inline Checkweighing Systems SC2-8050L30
Introduction
The SC2-8050L30 is a high-capacity dynamic checkweigher machine designed for inline quality control. As part of our advanced dynamic checkweigher systems, it offers precise in motion checkweighing for large packages up to 30kg. Ideal for logistics and industrial packaging lines, this robust solution enables real-time dynamic checkweighing with high accuracy and reliability. The auto checkweigher machine integrates seamlessly into inline checkweighing applications, supporting efficient weight inspection without interrupting product flow. Built for speed and precision, it ensures consistent output and compliance across demanding production environments. Our intelligent check weighers help detect under- and overweight items automatically, improving efficiency and reducing manual error.
Dynamic Checkweigher Inline Checkweighing Systems SC2-8050L30 Features
Dynamic Checkweigher SC2-8050L30 Technical Parameters
| Product model | SCW8050L30 |
| Weighting range | 0.05-30kg |
Weighting section size | L 800mm*W 500mm |
Belt speed | 5-90m/min |
Air pressure interface | Φ8mm |
| Case material | 304 stainless steel |
Conveying direction | Facing the machine, left in and right out |
Display division | 1g |
| Weighting accuracy | ±3-10g |
| Applicable product size | L≤600mm；W≤500mm |
Storage formula | 100 types |
| Power supply | AC220V±10% |
| Air source | 0.5-0.8MPa |
Data transmission | USB data export |
Alarm mode | Sound and light alarm and automatic rejection |
Rejection mode | Air blowing, push rod, swing arm, drop, up and down flip, etc. (customizable) |
| Optional function | Real-time printing, code reading and sorting, online code spraying, online code reading, online labeling |
Operation screen | 10-inch Weiluntong color touch screen |
Control system | Samegram online weighing control system V1.0.5 |
| Other configurations | Meanwell power supply, Jingyan motor, PVC food conveyor belt, NSK bearing, |
* The maximum checkweighing speed and accuracy may vary depending on the actual product being tested and the installation environment.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
