Checkweigher with forward and reverse weight selection for Small Packages SC1-C-3523L1
- group name
- Checkweigher
- Min Order
- 1 piece
- brand name
- SameGram
- model
- SC1-C-3523L1
- Nearest port for product export
- shenzhen
- Delivery clauses under the trade mode
- CIP
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Mon, 15 Sep 2025 08:10:11 GMT
Paramtents
Weighting range 1-1000g
Weighing speed 1-35pieces/min
Weighting accuracy ±0.02-0.1g
Weighting section size L 350mm*W 230mm
Applicable product size L≤300mm; W≤200mm
Weighing sections Standard 1 stage, optional 2 stages
Packging & Delivery
-
Min Order1 piece
Briefing
The SC1-C-3523L1 is the most suitable checkweigher for small packages. It has positive and negative weight selection functions and is compact and economical.
Detailed
Detail Information

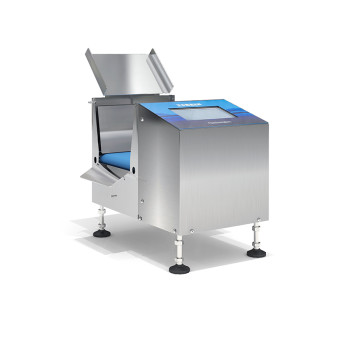

Checkweigher with Forward and Reverse Weight Selection for Small Packages SC1-C-3523L1 Introduction
The SC1-C-3523L1 is a high-precision small package checkweigher, particularly suitable for lightweight items such as cosmetics, pouches, and small packages. This automatic checkweigher features both positive and negative weight selections. Products pass over a weighing platform on a conveyor belt, and the system determines whether the product passes the weight range based on pre-set weight ranges. Positive sorting allows qualified products to continue on their way; negative sorting sends overweight or underweight products to the other side for rejection or re-inspection. It delivers fast, accurate results in a compact footprint, supporting efficient in-line inspection and quality control. This small dynamic checkweigher is customizable to accommodate products of varying sizes, weights, and packaging formats, ensuring that every product passing through meets the set weight standards. It is an ideal checkweighing solution for small-scale, high-speed applications.
Checkweigher with Forward and Reverse Weight Selection for Small Packages SC1-C-3523L1 Features
Checkweigher with Forward and Reverse Weight Selection for Small Packages SC1-C-3523L1 Technical Parameters
| Product model | SC1-C-3523T1 |
| Weighting range | 1-1000g |
Weighting section size | L 350mm*W 230mm |
weighing speed | 1-35pieces/min |
Case material | 304 stainless steel |
Display division | 0.02g |
| Weighting accuracy | ±0.02-0.1g |
| Applicable product size | L≤300mm; W≤200mm |
Storage formula | 100 types |
| Power supply | AC220V±10% |
Data transmission | USB data export |
weighing sections | Standard 1 stage, optional 2 stages |
Rejection mode | Select left or right |
| Operation screen | 7-inch Kunluntong color touch screen |
Control system | Samegram Online Weighing Control System V1.0.5 |
Other configurations | Meanwell power supply, Jingyan motor, Swiss PU food conveyor belt, NSK bearing, Mettler Toledo sensor |
* The maximum checkweighing speed and accuracy may vary depending on the actual product being tested and the installation environment.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
File Downloads
For more product related parameter files, please contact us.
